ALL KIND OF BUCKETS FOR MACHINERY UP TO 250 TON
ENHANCED DURABILITY

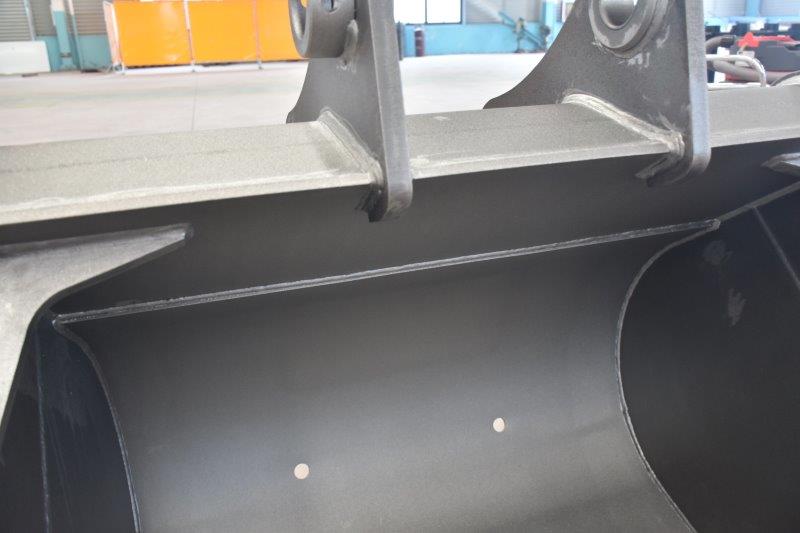

One-piece header design improves load distribution and durability
Strategic placement of JFE450/500 LE wear material in the cutting edge, side blades and bottom corner to reduce wear

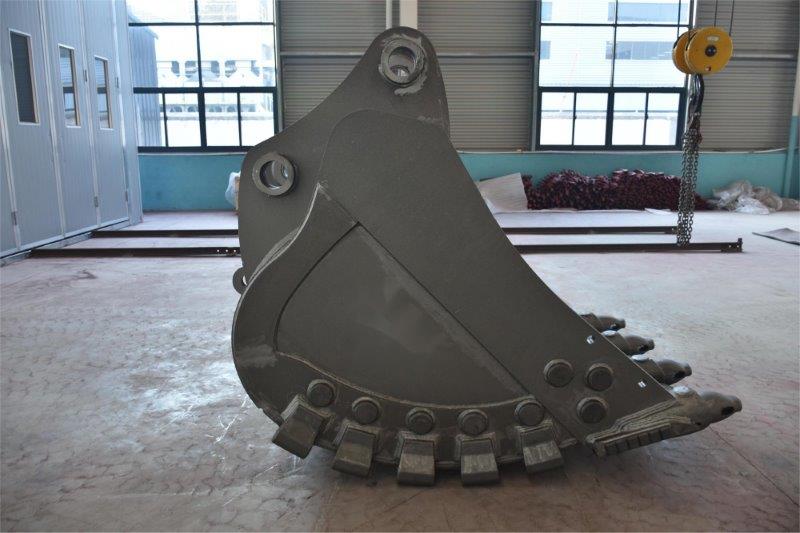

HEAVY-DUTY BUCKET
Main Edge HB500
Side Edges Q690D
Side Strips HB500
Teeth: Various type available
Bucket Pins: Equal to AISI 4140 Chrome Bolts & Nuts: Level 12.9
SEVERE-DUTY BUCKET
Main Edge HB500
Side Edges Q690D
Side Strips HB500
Bottom Reinforcing Plates HB500
Teeth: Various type available
Bucket Pins: Equal to AISI 4140 Chrome Bolts & Nuts: Level 12.9

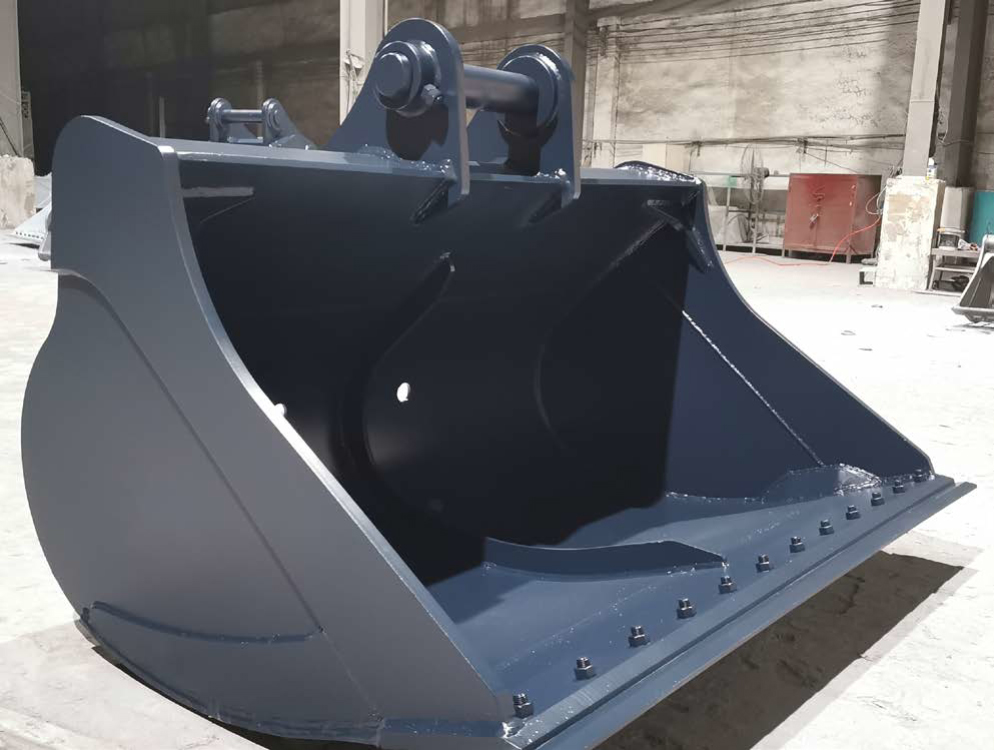

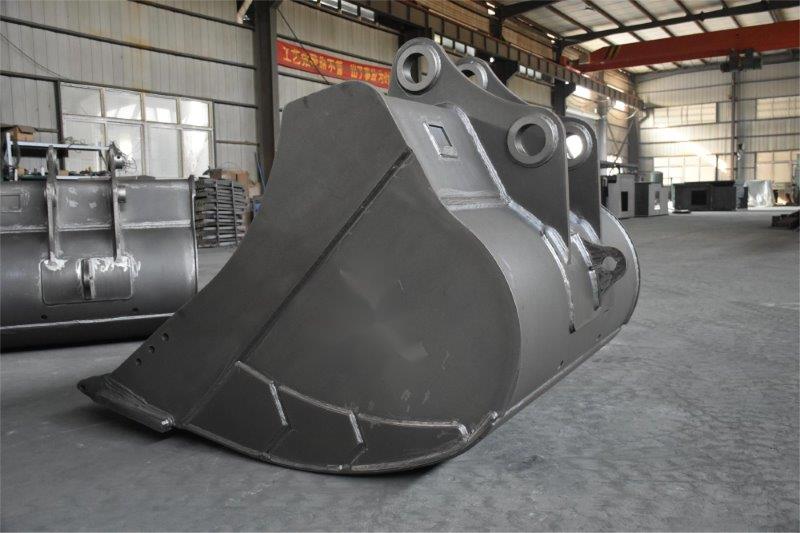

MUD BUCKET
The Mud Bucket is designed for bulk loading trucks with loose aerated material, finishing and leveling ground and transporting other attachments around the worksite. The Mud Bucket is designed to work to the excavator’s maximum safe working load.
The cutting edge, is reinforced by a heavy duty bolt-on-edge to ensure the bucket lip remains straight and to protect it against excessive wear.

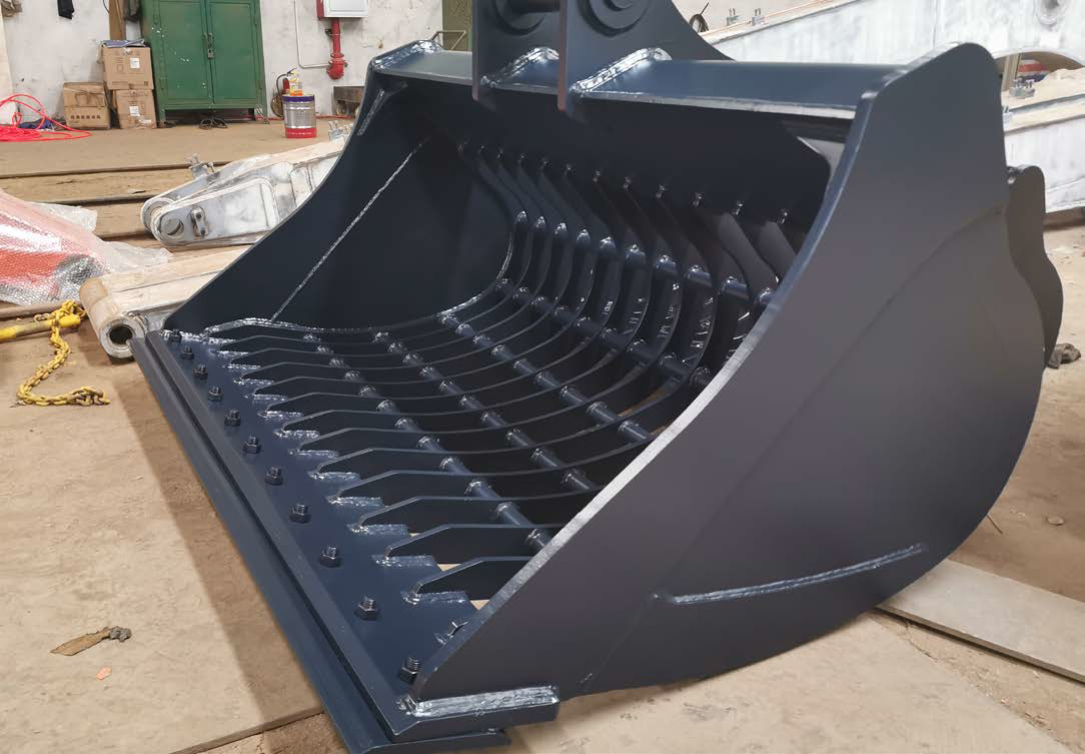

SIEVE BUCKET
The ribs of sieve bucket is fully used with HB400 steel. Which will be 3 times harder and 4 times stronger and tougher than mild steel.
The rib spacing is from 75mm to 150mm, making them functional for all applications of demolition, building clean-up, sorting or digging rock.

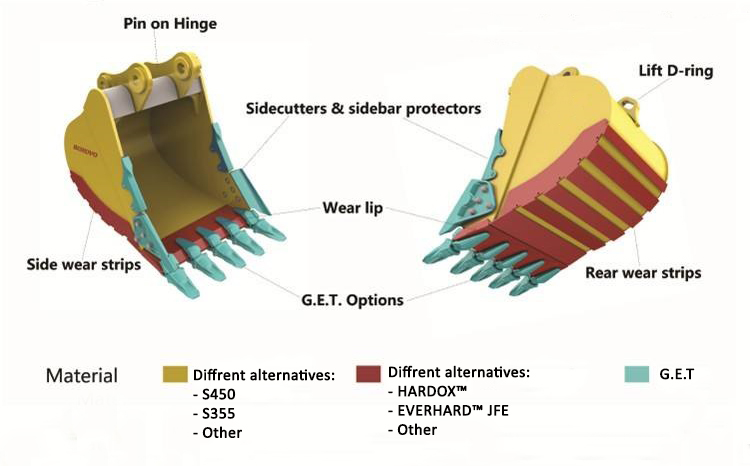

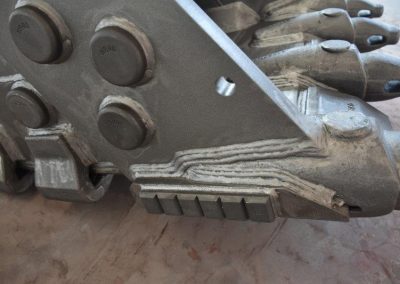

SIDE STRIPS
Side Strips HB500
interlocked ribs HB400

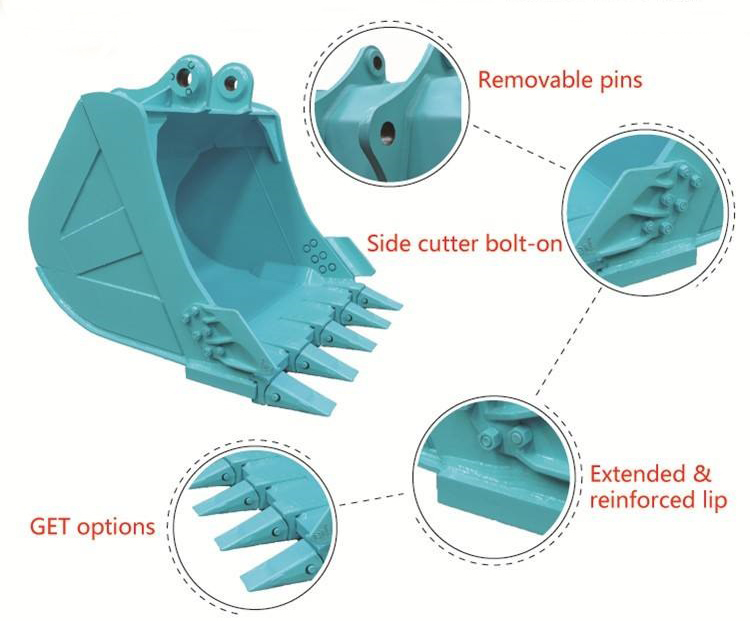

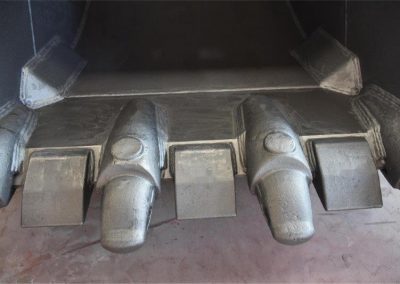

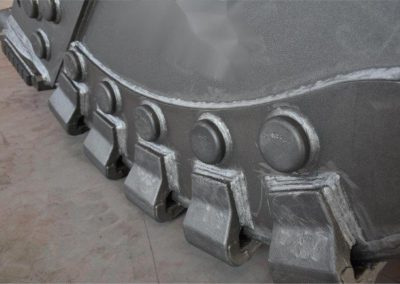

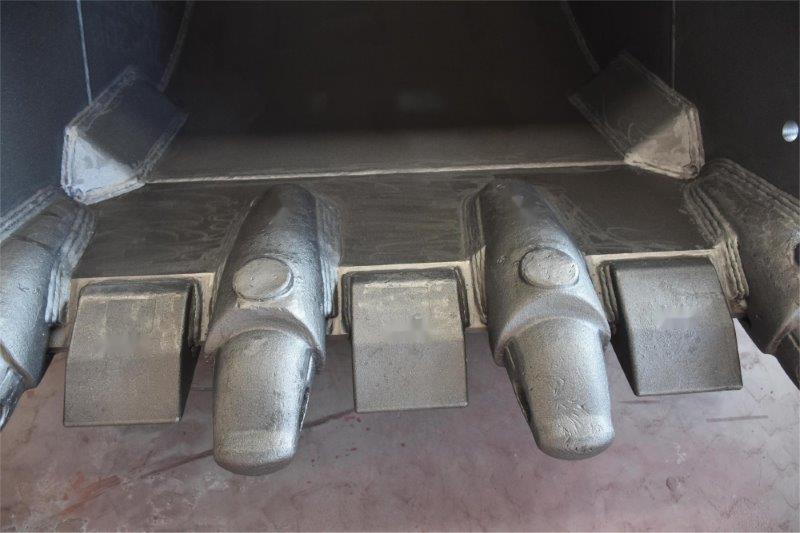

CUTTING EDGE
Bolt-On Cutting Edge or Teeth Optional Bucket Pins: Equal to AISI 4140 Chrome Bolts & Nuts: Level 12.9
INFRALAND LA Heavy-Duty and Severe-Duty Series of excavator buckets combines innovative design and advanced materials for the ultimate job site productivity.
Use INFRALAND LA Buckets to tackle tough digging material handling conditions with solid One-piece header design improves load distribution and durability Strategic placement of either JFE450/500 LE OR Swedish HARDOX wear material in the cutting edge, side blades and bottom corner to reduce wear results.

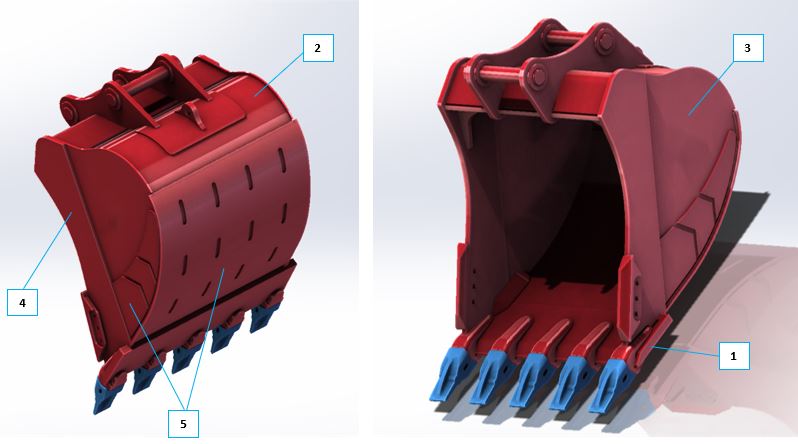

HEAVY DUTY (HD) BUCKETS - DEFINED STEEL GRADES AND HARDNESS
| HD-BUCKET SERIES | |||
| ITEM | NAME | LEVEL-1 | COMMENT |
| 1 | CUTTING EDGE | JFE 500 | JFE 500 is equivalentto HARDOX 500 |
| 2 | SHELL | Q690D | Q690D is equivalentto A514 |
| 3 | WALL PLATE | Q690D | |
| 4 | SIDE BLADES | Q690D | |
| 5 | SIDE AND BOTTOM PLATES | NM500 | |

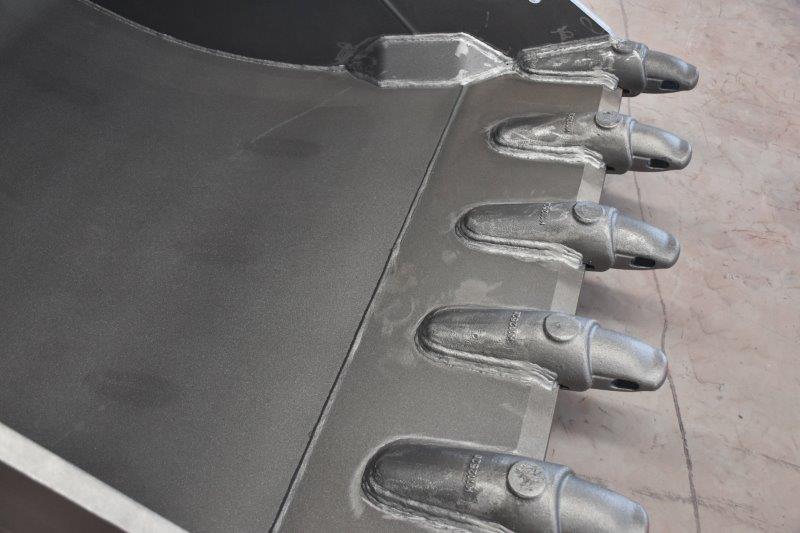

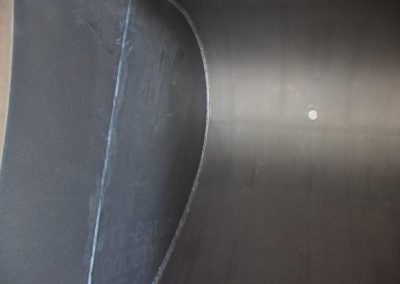

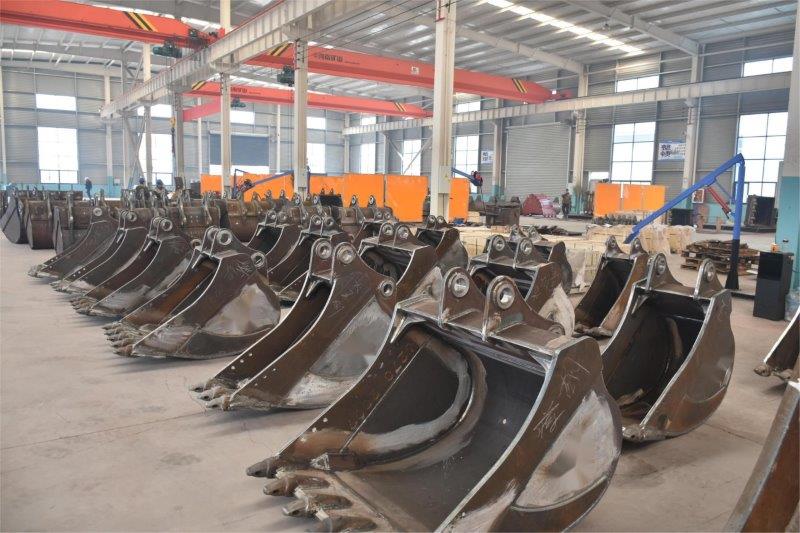

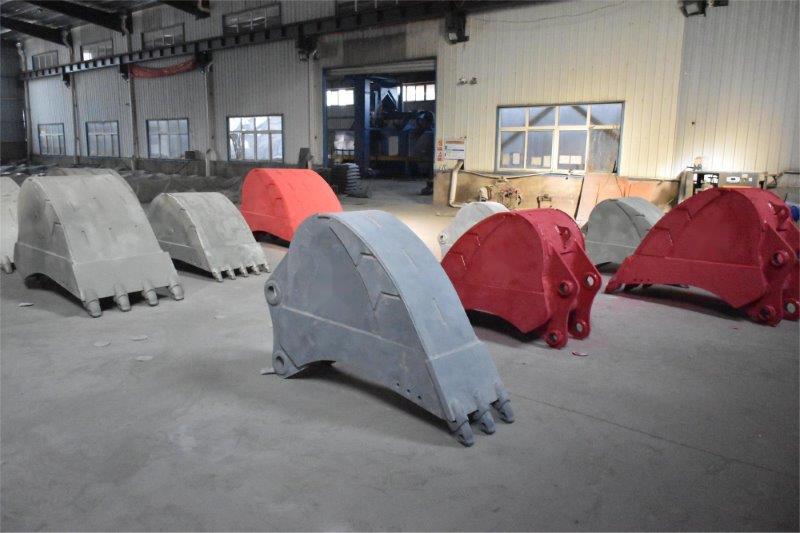

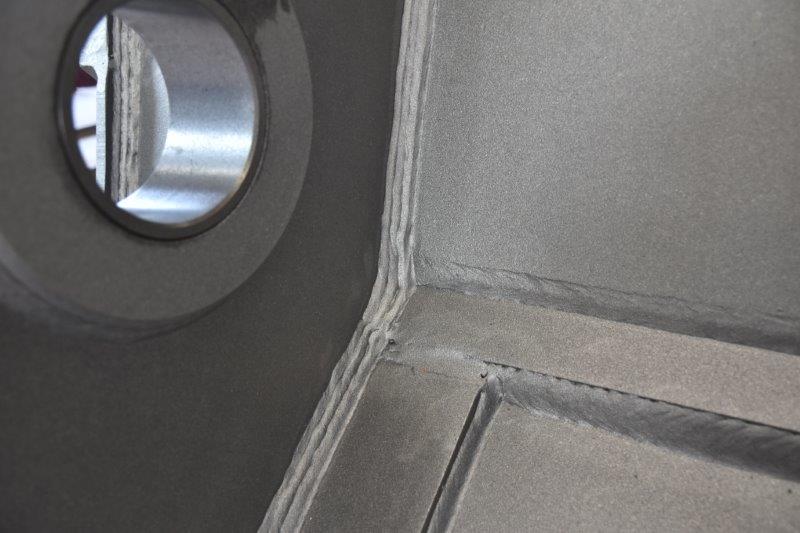

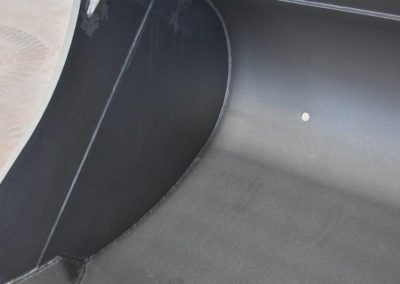

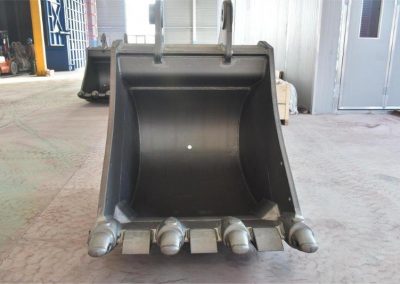

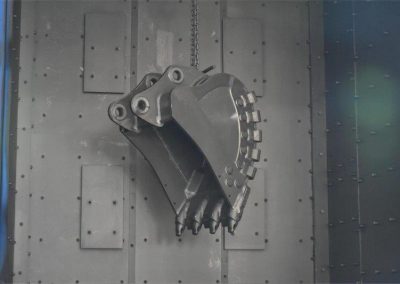

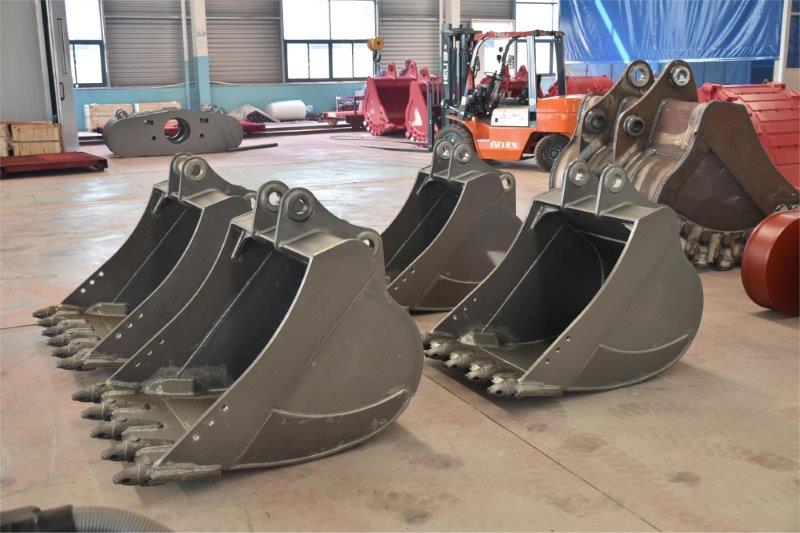

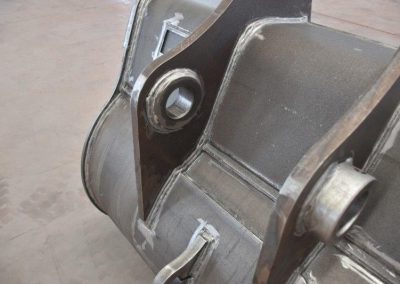

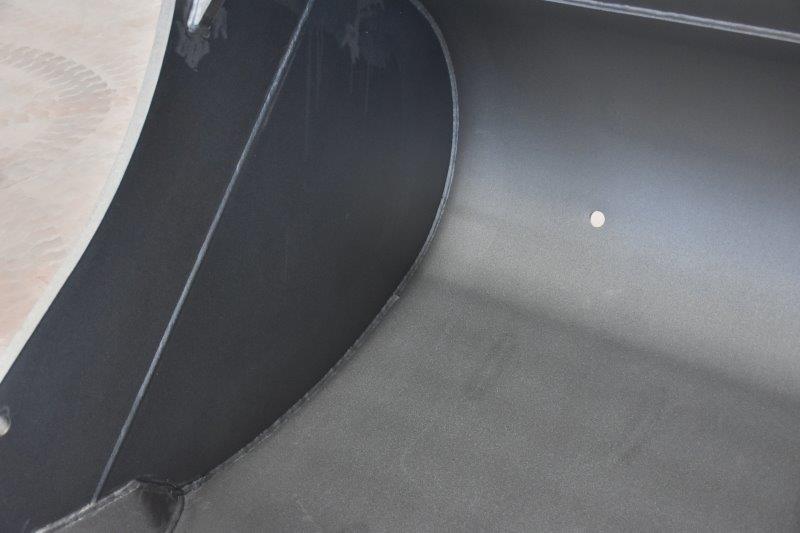

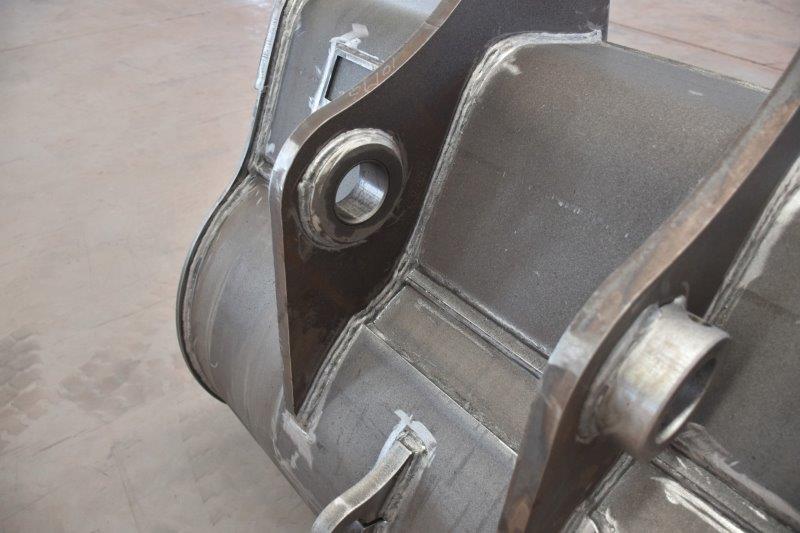

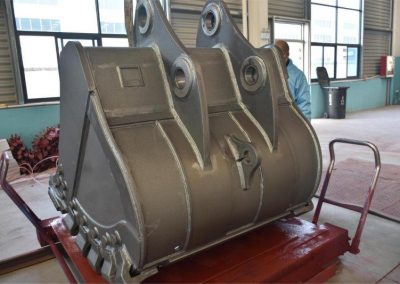

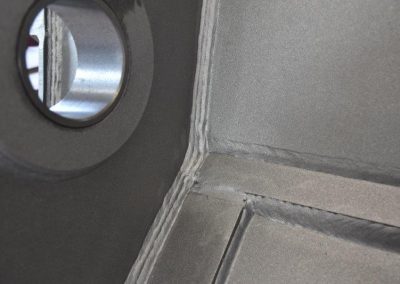

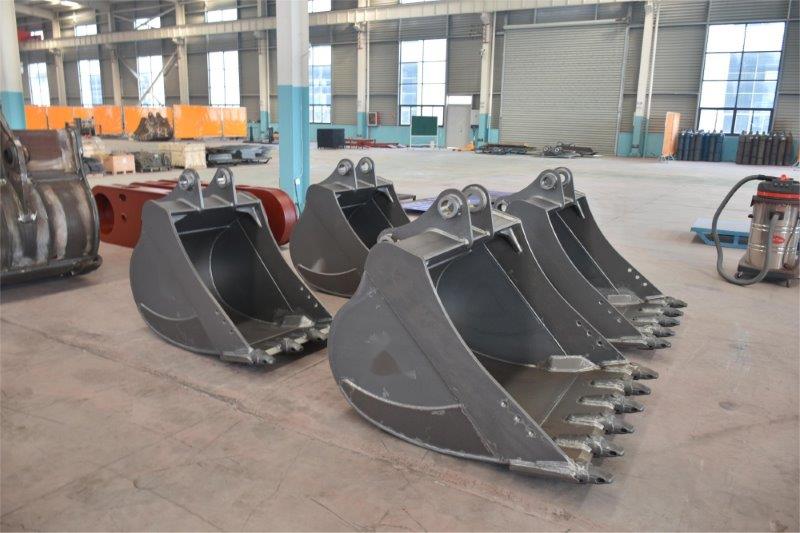

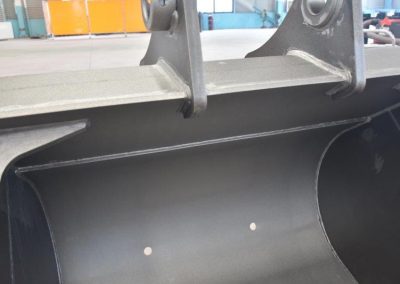

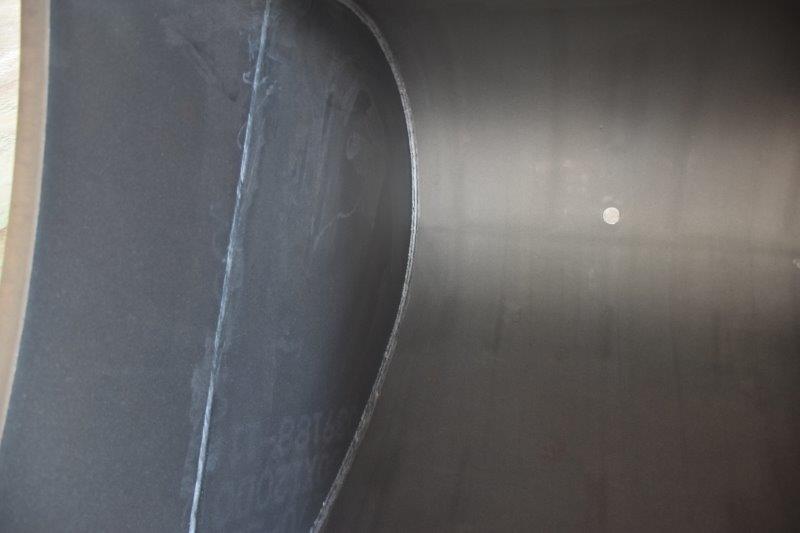

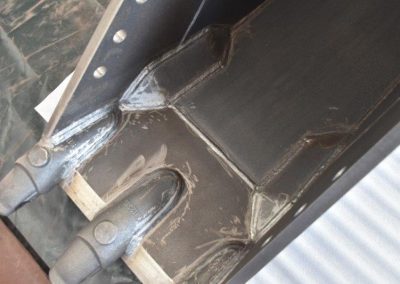

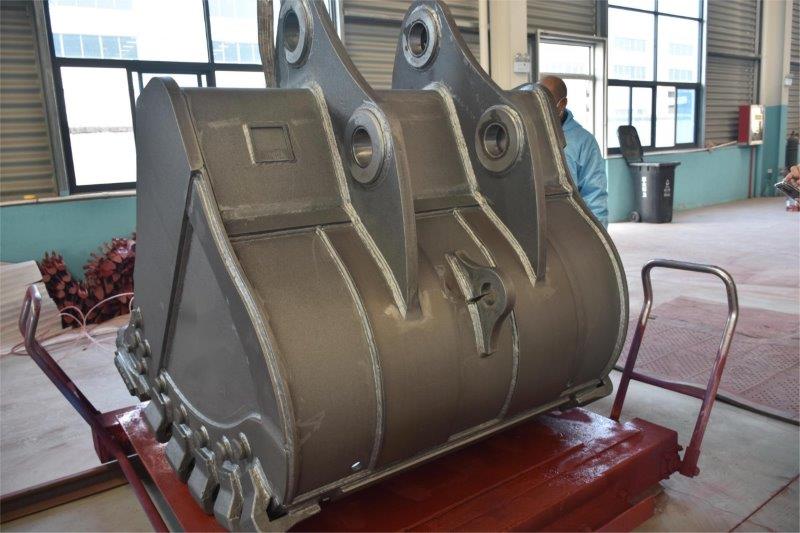

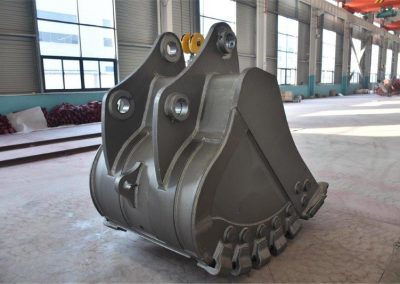

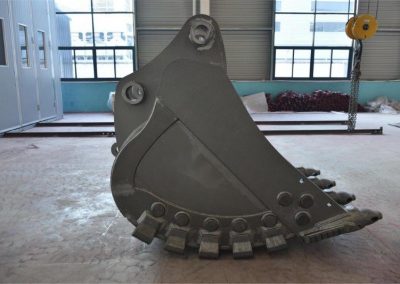

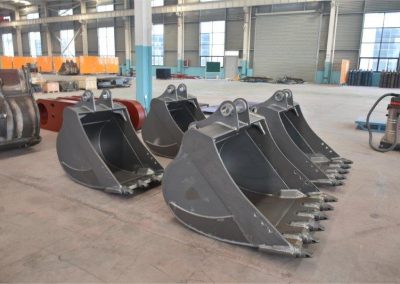

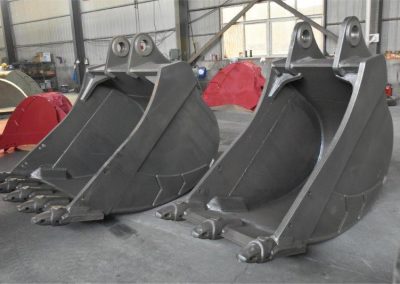

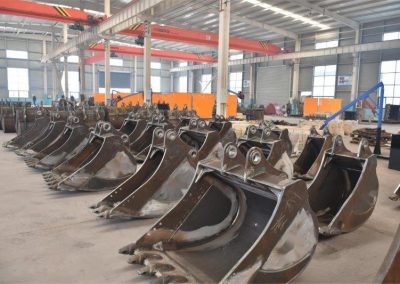

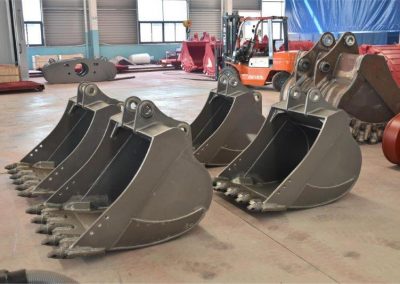

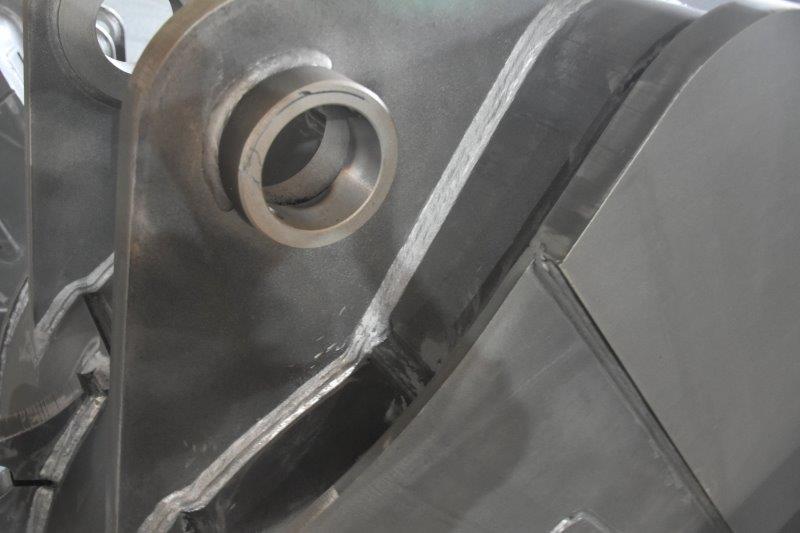

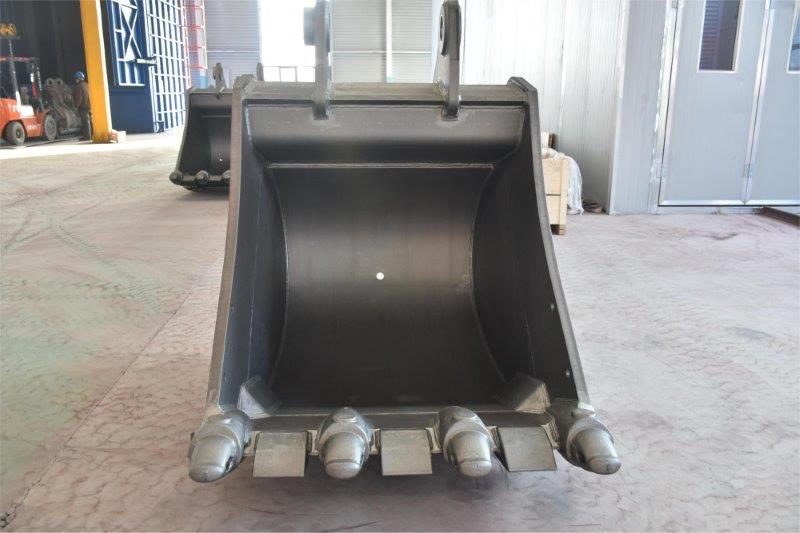

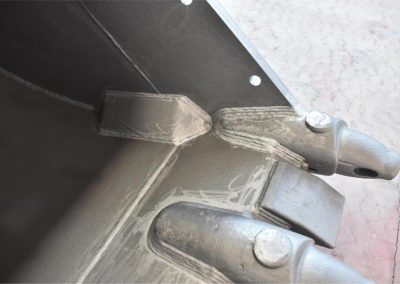

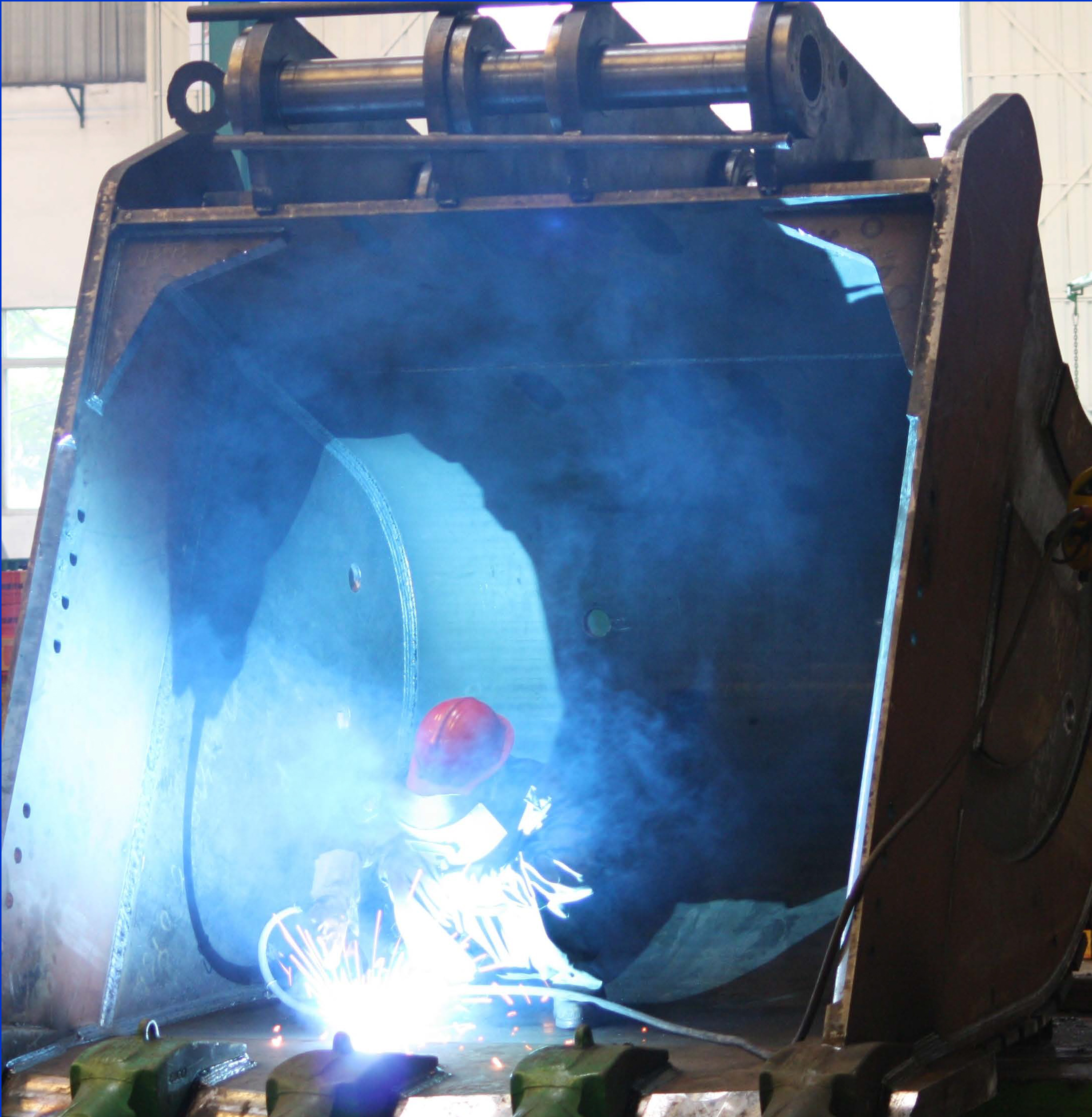

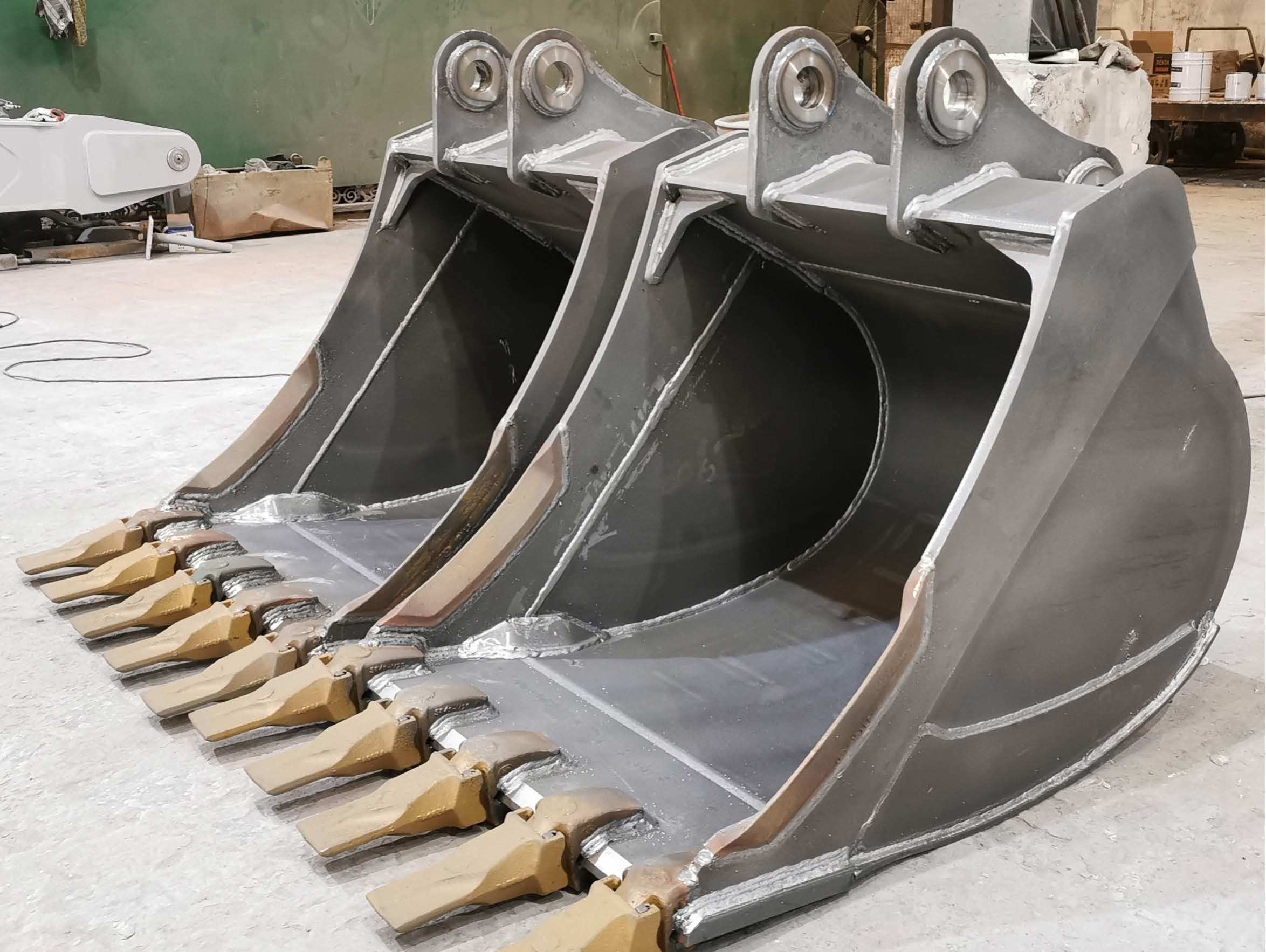

HEAVY DUTY (HD) BUCKETS - MANUFACTURING IMAGES

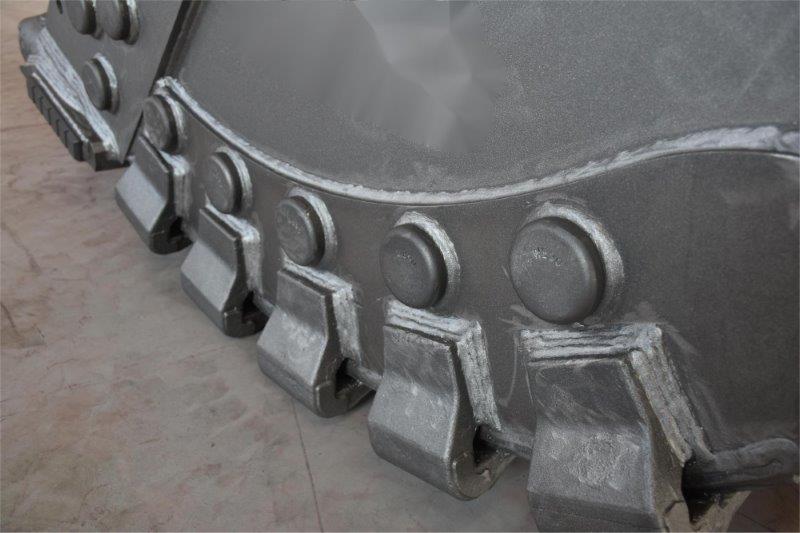

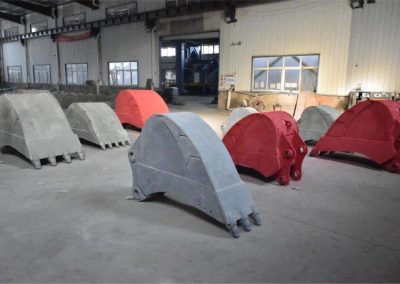

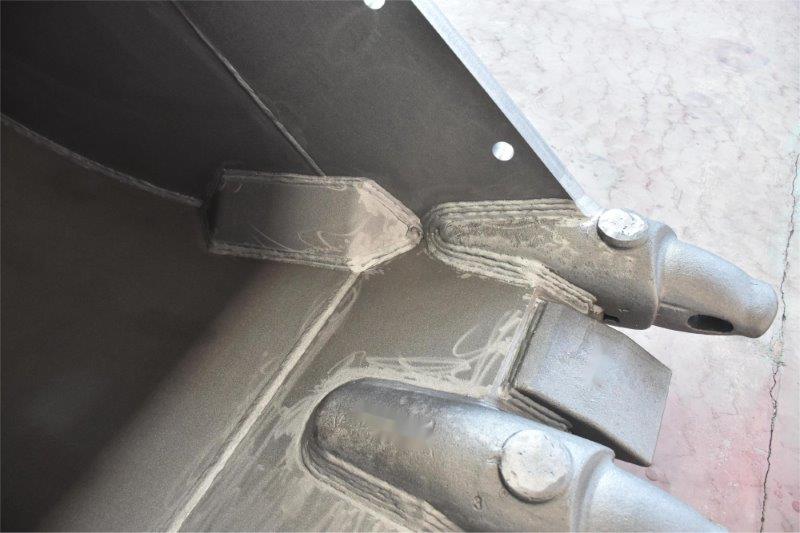

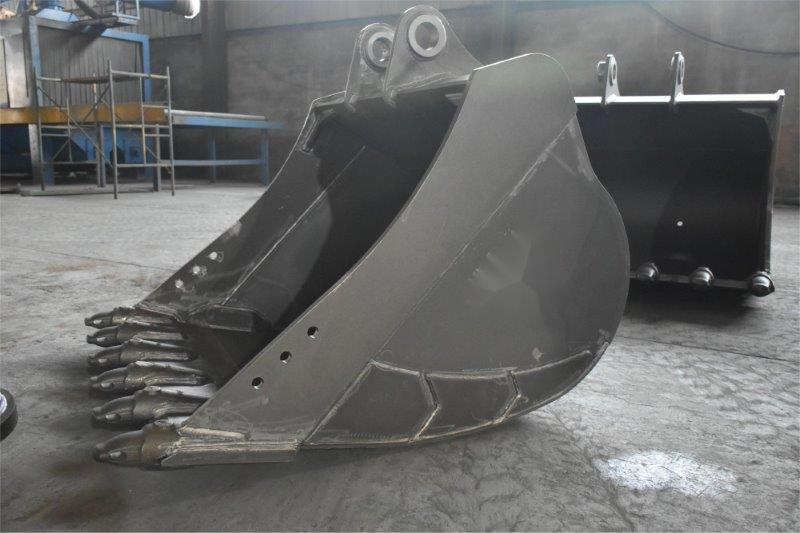

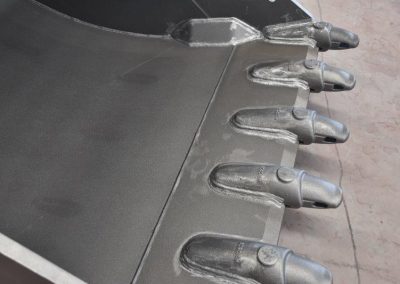

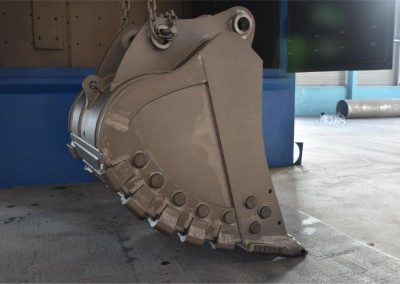

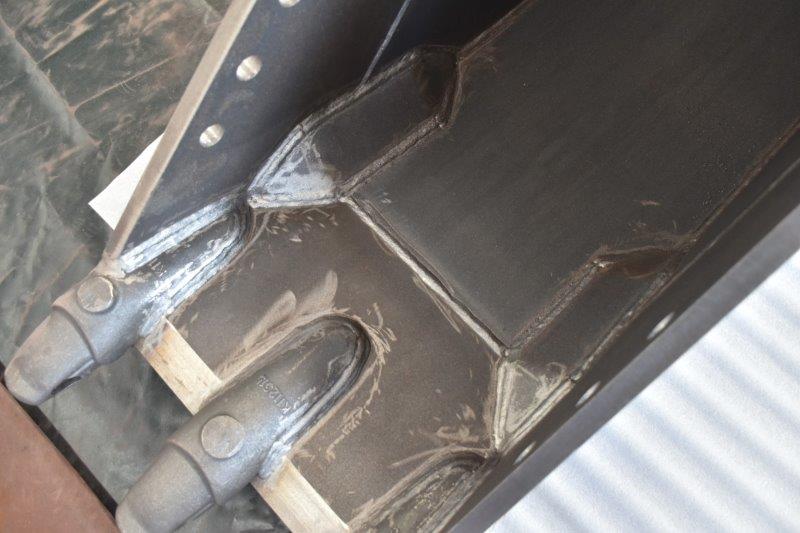

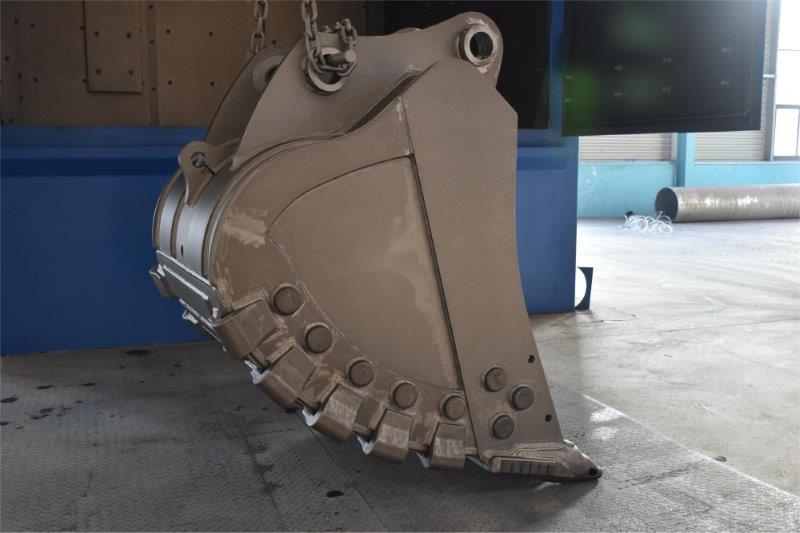

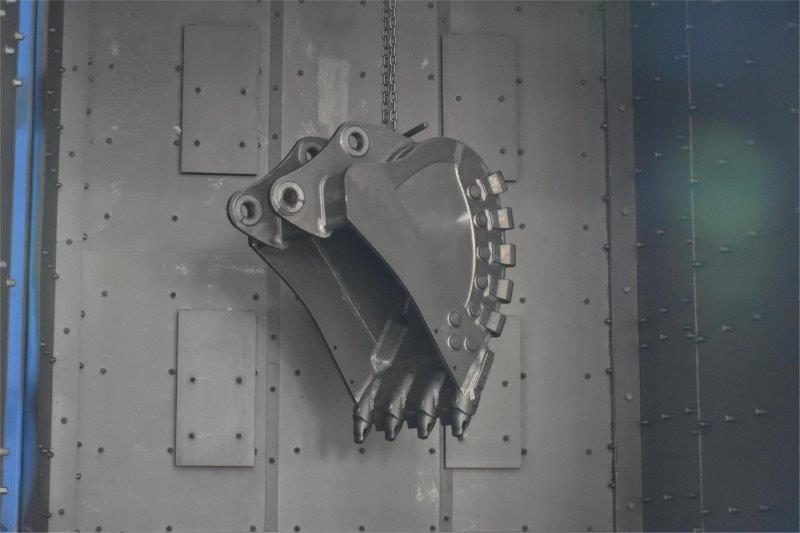

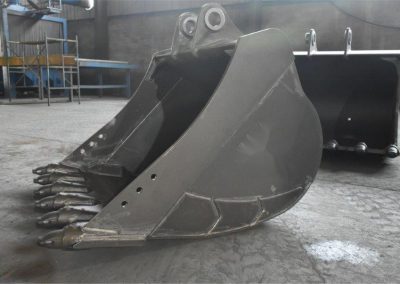

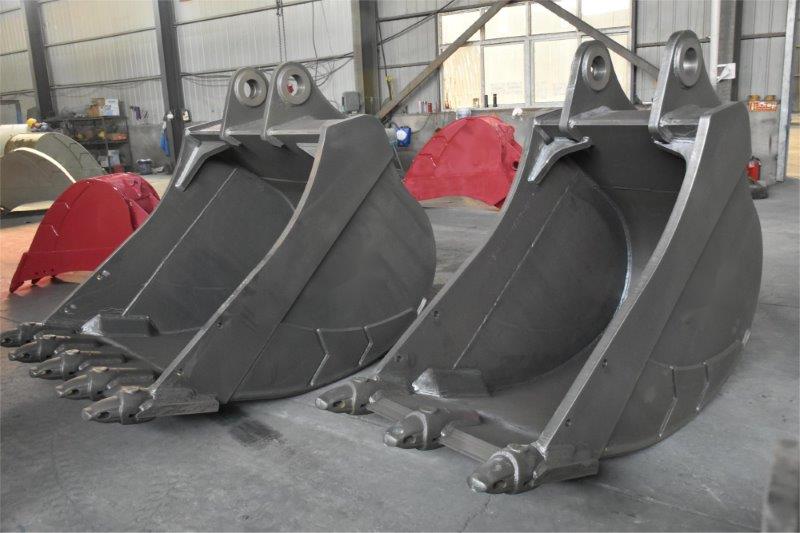

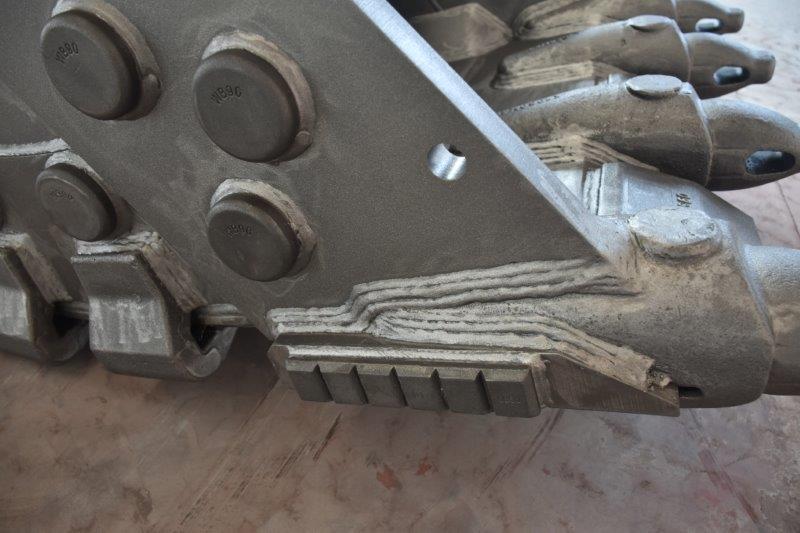

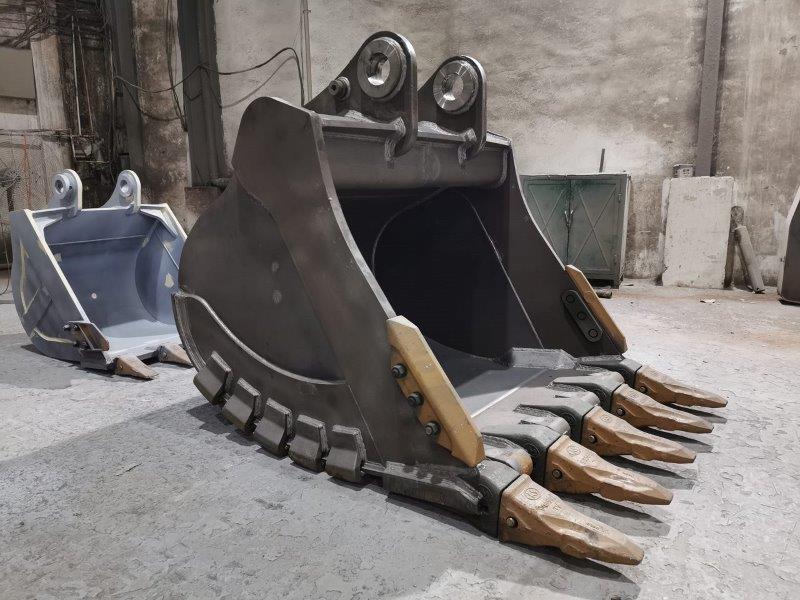

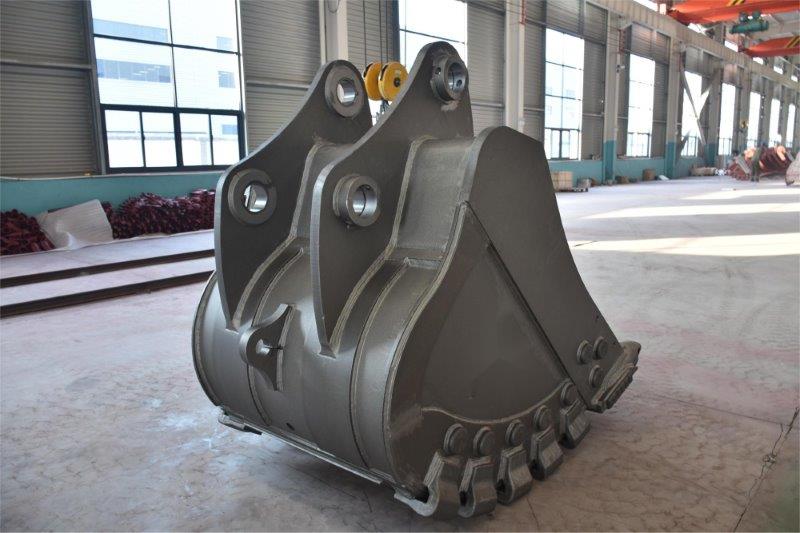

HEAVY DUTY ROCK (HDX) BUCKETS - MANUFACTURING IMAGES
We’ve been in the BUCKET business for over 12 Years
INFRALAND not only specialises in the industry standard ‘digger bucket’, but we can also offer specialist attachments such as riddle buckets, ripper teeth, landrakes and even manual quick hitches. With a huge knowledge of the plant machinery market, we know exactly what our clients require to do their job as efficiently as possible.
